Shortcut Keys in BO Editors

This document provides a reference of the shortcut keys supported in FNZ Studio Editors.

Shortcut Key Overview

Following is a list of shortcut keys, the action they perform, and the list of Editors in which they are supported.

Shortcut Key Action Editors
Ctrl + S Save All
Ctrl + W Close Editor All
Ctrl + M Maximize / Minimize all regions All
Ctrl + Z Undo / Revert Process, Screen, Data Class, Data Logic, Script Function, PDF Output, PDF Output Table, Rule, Integration Link, Test Data
Ctrl + F Focus on the Components library filter Process, Screen, Data Logic, Document, Document Set, PDF Output, PDF Output Table, Rule, Rule Set, Integration Link, Catalog, Report, Access Policy
Ctrl + Shift + V Validate Process, Screen, Data Class, Data Logic, Script function, PDF Output, PDF Output Table, Rule, Catalog, Integration Link
Ctrl + Y Redo Data Class, Data Logic, PDF Output Table
Ctrl + C Copy Process, Screen, Data Logic (Controls, Rules, Variables), PDF Output, PDF Output Table
Ctrl + V Paste Process, Screen, Data Logic (Controls, Rules, Variables), PDF Output, PDF Output Table
Ctrl + X Cut Process, Screen, Data Logic (Controls and Rules), PDF Output, PDF Output Table
Ctrl + D Duplicate Process, Screen, PDF Output, Script Function
Backspace / Delete Remove Process, Screen, Data Logic (Controls, Rules, Variables), PDF Output, PDF Output Table, Document, Document Set, Rule, Rule Set, Report, Access Policy
Ctrl + A Select all elements; Activate Children Process, Document, Document Set, PDF Output, Rule Set, Report, Access Policy, PDF Output Table
Tab Tabbing between elements PDF Output, Catalog
Arrows Move selected element(s) Process, PDF Output, Catalog
Alt + Arrows Move selected element(s) with offset of 10px Process, PDF Output
Shift + Arrows If element(s) are selected, changes their width and height;
  • It selects text
    		• PDF Output; Script Function
    Alt + Drag Component(s) Copies the selected component(s) Screen, Rule, PDF Output Table (use Ctrl instead of Alt)

    Shortcut Keys per Business Object Editor

    The attached PDF file provides an overview of the supported shortcut keys per Business Object Editor: PDF version - 2025.x.x.

    Note that some Editors provide additional shortcuts. See:Data Logic Business Object and Data Class Business Object

    Shortcut Keys Behavior in Script Function, Catalog and Expression Editor

    For some editors, additional shortcuts are available when the focus is in the central area, or their functionality is different, compared to when the focus is outside of the central area:

    • For the Script Function and the Expression editor, when the focus is in the central area of the script or expression editor, compared to when the focus is outside of the central area.
    • For the Catalog editor, when the focus is in the central table compared to when the focus is outside of it.
    The Expression Editors can be accessed from some fields in the Business Object Editors, such as the Script field in the Data Class Editor, or the sentry field in the Data Logic Editor, among others).
    Shortcut Key Action Editors
    Ctrl + S Save Script Function, Expression Editor
    Ctrl + W Close Editor Script Function, Expression Editor, Catalog
    Ctrl + M Maximize / Minimize area Script Function, Catalog
    Ctrl + Z Undo last action Script Function, Expression Editor, Catalog
    Ctrl + F Find in Editor Script Function, Expression Editor
    Ctrl + G Find next text occurrence in Editor Script Function, Expression Editor
    Ctrl + C Copy selected row or text occurrence Script Function, Expression Editor, Catalog (only text)
    Ctrl + V Paste selected row or text occurrence Script Function, Expression Editor, Catalog (only text)
    Ctrl + X Cut selected row or text occurrence Script Function, Expression Editor, Catalog (only text)
    Ctrl + D Duplicate selected row Script Function, Expression Editor
    Ctrl + Alt + C Clears output Script Function
    Ctrl + Alt + L Validates script Script Function, Expression Editor
    Ctrl + Alt + R Runs script Script Function
    Ctrl+Shift+ D Delete selected row Script Function, Expression Editor
    Ctrl+Shift+ F Replace text occurrence (with other specified text) Script Function, Expression Editor
    Ctrl+Shift+ G Find previous text occurrence in Editor Script Function, Expression Editor
    Ctrl+Shift+ R Replace all text occurrences (with other specified text) Script Function, Expression Editor
    Ctrl+F+F Opens browser search Script Function
    Backspace Delete last character or selected text Script Function, Expression Editor, Catalog
    Ctrl + A Select whole text in Editor Script Function, Expression Editor, Catalog
    Tab Tab between elements Script Function, Catalog
    Arrows Moves between rows, or columns Script Function, Expression Editor, Catalog
    Shift + Arrows Select Text Script Function, Expression Editor

    Appendix: Further Shortcuts

    Following is a series of further shortcuts that may help you be more productive in your interaction with FNZ Studio Composition: ShortcutTableSpecials2024.pdf

    CTRL Key

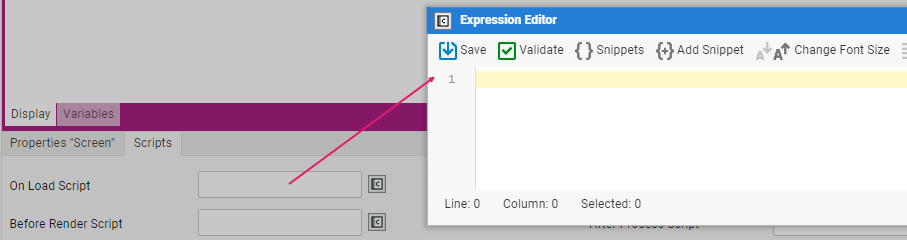

    • CTRL + E while on a Script field: opens the Script Editor.

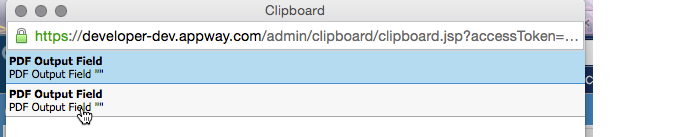

    • CTRL + Shift + C while on the BO Library: opens the multiple clipboard widget /admin/clipboard/clipboard.jsp.

    • CTRL while drawing a Connection (Process Business Object): makes the connection Conditional.

    Shift Key
